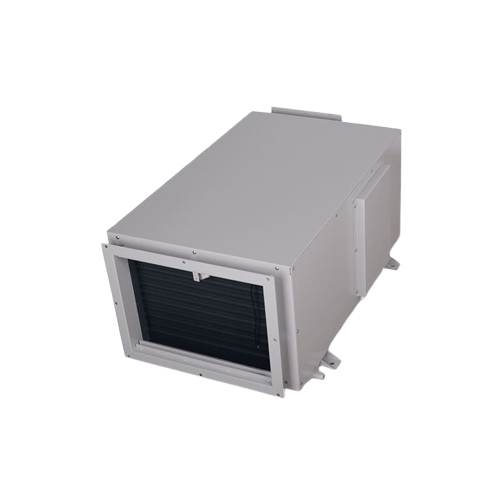

YCD-90E ceiling dehumidifier 90 liters
Name: Ceiling Dehumidifier
Model: YCD-90E
Capacity: 90L/D（30℃ RH80%）
Highlights:
*Compact Size
*Switch for control, simplicity of operator
*Easy to clean the filter net
Size:
– Unit Dimension 898.40 mm (L)*580 mm (W)*396 mm (H)
Description:
– Wide humidity control from 5%-95%
– Real time humidity feedback from digital display
– Nice design with metal housing, strong and reliable quality
– Water dranin directly
– Power off memory function
– 3 minutes delay compressor protection function
– Self-motion defrost way
GETJOEAIR’s YCD-90E - An Ultimate Ceiling Dehumidifier For Garages
If you need a ceiling dehumidifier for an area up to 120 meter squares, YCD-90E is the best pick. It can remove up to 90 liters of moisture from this area, each day. This model has a wider air inlet, allowing more air to get dehumidified in less time. The air outlet is at the back. You must install the dehumidifier in a place with proper airflow to ensure proper ventilation and functioning of the device.
GETJOEAIR installs top-notch components in all its ceiling dehumidifiers, like compressor from the famous brands, condenser, centrifugal fan, evaporator, and advanced control system. Moreover, the drainage outlet is provided in YCD-90E. However, you need to attach a drainage pipe/channel to ensure continuous drain. The drain system is also installed in the ceiling making the area clean and spacious.
YCD-90E Ceiling Dehumidifier Parameter
Name: Ceiling Dehumidifier
Model: YCD-90E
Capacity:
Maximum Dehumidification: 90L/D（30℃ RH80%）
Nominal Dehumidification: 45L/D（27℃ RH60%）
Electrical
- Supply Voltage:(Option 1): 110VAC-1 Phase-60Hz
(Option 2): 220-240VAC-1 Phase-50Hz - Input Power: 1160W
- Maximum Input: 1450W
Parameter
- Air Volume: 1000m3/h
- Freezing Medium: Environmental friendly
- Equipment Noise: ≦58dB
- Applicable Temperature:5～38℃
Shipping Specs
- Equipment Dimension(L*W*H): 898.40*580*396mm
- Equipment Weight: 45kg
- Carton Dimension(L*W*H): 93*65*47cm
- Packing Weight: 47kg
Container Qty
- 20’GP: 105 Units
- 40’GP: 210 Units
- 40’HQ: 210 Units

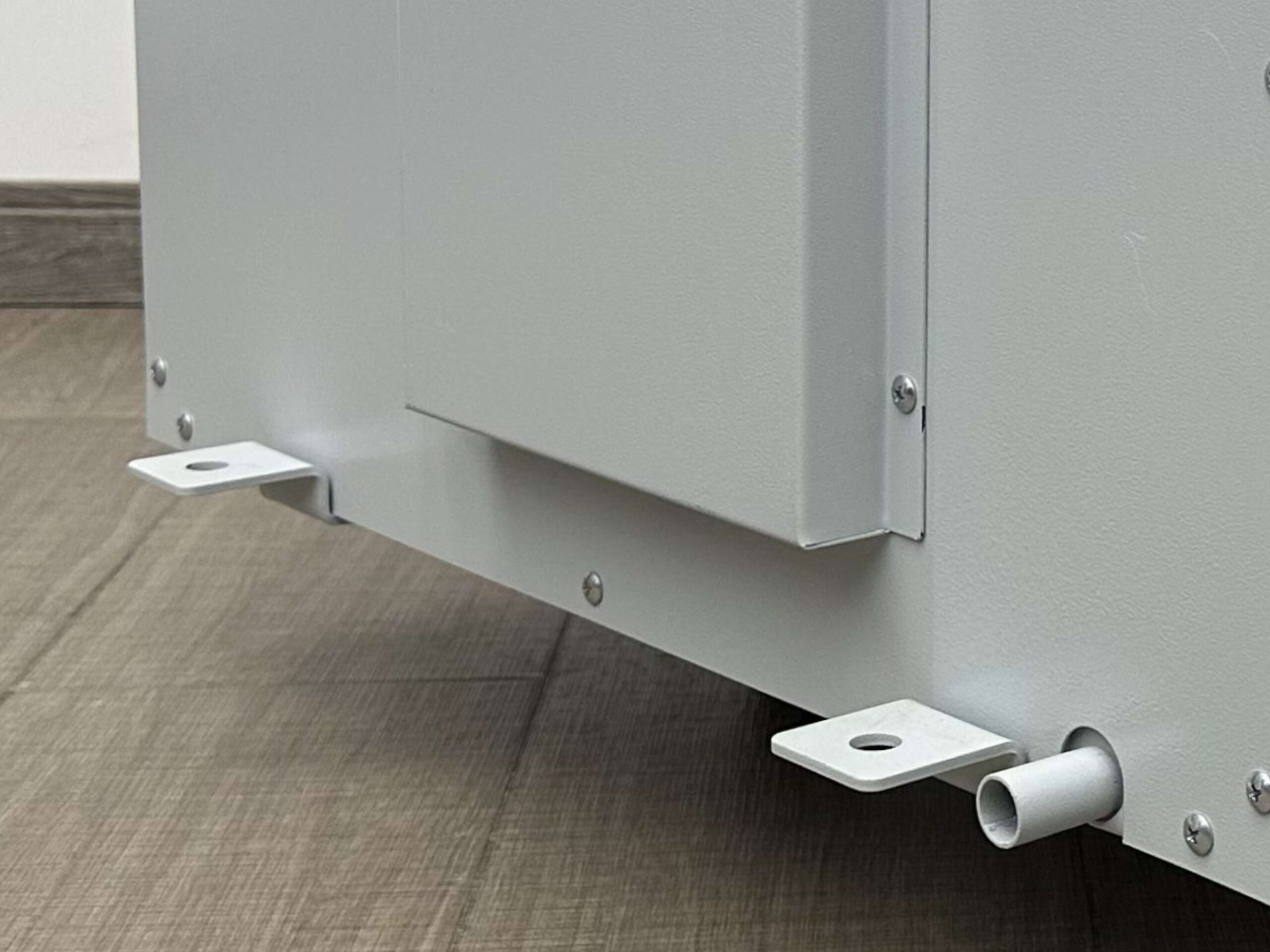

Bottom Corners For Suspension Rods
YCD-90E has strong metal footings at the bottom. These footings are to ensure safe and convenient suspension of the ceiling dehumidifier. The suspension rods pass through the bottom corners and give support to the dehumidifier.

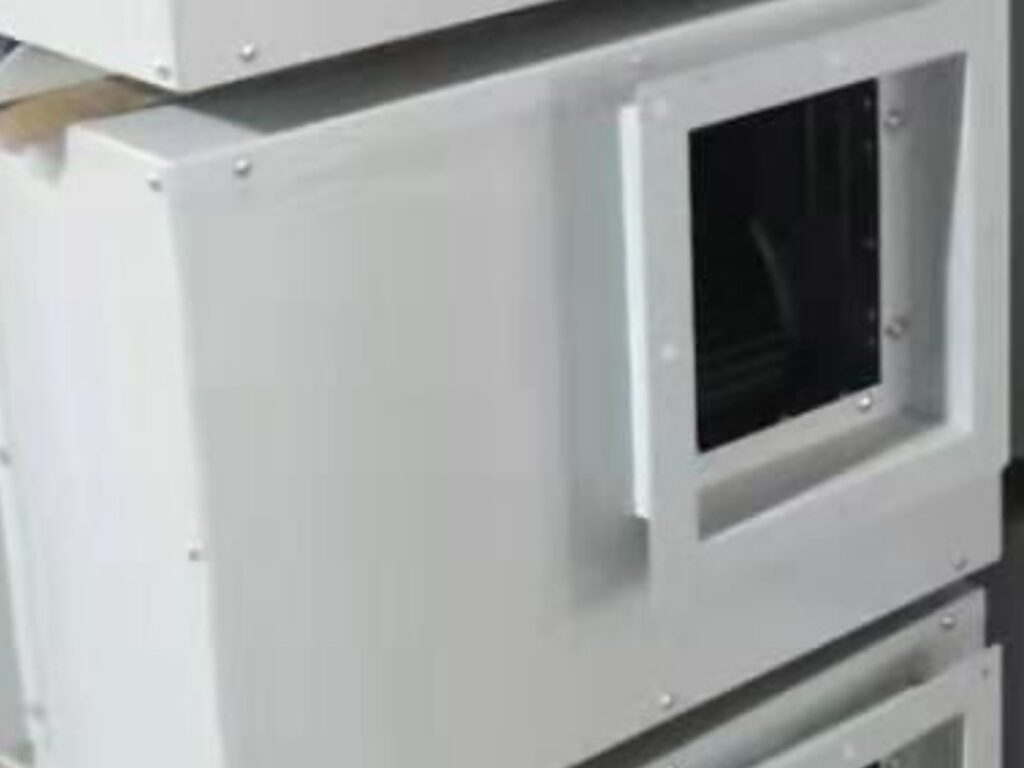

Bigger Air Inlet
GETJOEAIR’s YCD-90E has a wider air inlet protected with a nylon-mesh air filter. The cleaning of the filter is mandatory as it can affect the efficiency of the unit. So, remove the filter, either clean by using a vacuum cleaner or rinse it with fresh water.
