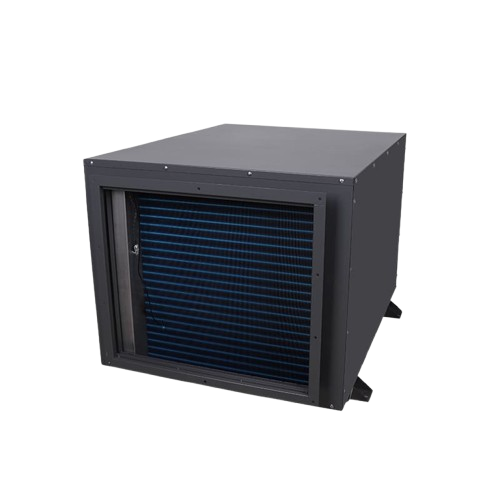

YCD-10S ceiling dehumidifier 240 liters
Name: Ceiling Dehumidifier
Model: YCD-10S
Capacity: 240L/D（30℃ RH80%）
Highlights:
*Compact Size
*Switch for control, simplicity of operator
*Easy to clean the filter net
Size:
– Unit Dimension 1098 mm (L)*870 mm (W)*694.50 mm (H)
Description:
– Wide humidity control from 5%-95%
– Real time humidity feedback from digital display
– Nice design with metal housing, strong and reliable quality
– Water dranin directly
– Power off memory function
– 3 minutes delay compressor protection function
– Self-motion defrost way
YCD-10S Ceiling Dehumidifier Parameter
Name: Ceiling Dehumidifier
Model: YCD-10S
Capacity:
Maximum Dehumidification: 240L/D（30℃ RH80%）
Nominal Dehumidification: 144L/D（27℃ RH60%）
Electrical
- Supply Voltage:
(Option 1): 220-240VAC-3 Phase-60Hz
(Option 2): 380-415VAC-3 Phase-50Hz - Input Power: 3500W
- Maximum Input: 4400W
Parameter
- Air Volume: 2500m3/h
- Freezing Medium: Environmental friendly
- Equipment Noise: ≦65dB
- Applicable Temperature:5～38℃
Shipping Specs
- Equipment Dimension(L*W*H): 1098*870*694.50mm
- Equipment Weight: 115kg
- Wooden Dimension(L*W*H): 110*91*85cm
- Wooden Weight: 138kg
Container Qty
- 20’GP: 24 Units
- 40’GP: 48 Units
