YCD-7S ceiling dehumidifier 168 liters
Name: Ceiling Dehumidifier
Model: YCD-7S
Capacity: 168L/D（30℃ RH80%）
Highlights:
*Compact Size
*Switch for control, simplicity of operator
*Easy to clean the filter net
Size:
– Unit Dimension 994.40 mm (L)*700 mm (W)*694.50 mm (H)
Description:
– Wide humidity control from 5%-95%
– Real time humidity feedback from digital display
– Nice design with metal housing, strong and reliable quality
– Water dranin directly
– Power off memory function
– 3 minutes delay compressor protection function
– Self-motion defrost way

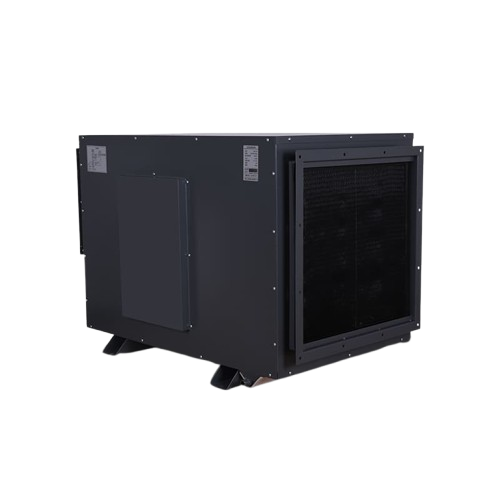

YCD-7S - GETJOEAIR’s Ceiling Dehumidifier For Humidity Control In Larger Areas
YCD-7S is one of the units from the GETJOEAIR’s 3-phase ceiling dehumidifier line. It is a powerful dehumidifier, suitable for commercial areas of up to 200 meters square. It can remove 168 liters of moisture from the air, daily. Moreover, it is heavier and bigger in size than the single phase dehumidifiers. With enlarged air inlet and two air outlet grids, the machine efficiently takes in humid air and sends back dry air into the room.
From the world’s renowned brands, GETJOEAIR gets its raw material and machine components to manufacture top notch ceiling dehumidifiers. YCD-7S’s efficient dehumidification capacity, low noise operation, and robust build are the evidence. Furthermore, a wired digital controller makes the control convenient. Also, it provides you with real time humidity check along with auto power on/off function and ventilation/dehumidification options.
YCD-7S Ceiling Dehumidifier Parameter
Name: Ceiling Dehumidifier
Model: YCD-7S
Capacity:
Maximum Dehumidification: 168L/D（30℃ RH80%）
Nominal Dehumidification: 100L/D（27℃ RH60%）
Electrical
- Supply Voltage:
(Option 1): 220-240VAC-3 Phase-60Hz
(Option 2): 380-415VAC-3 Phase-50Hz - Input Power: 2800W
- Maximum Input: 3500W
Parameter
- Air Volume: 2000m3/h
- Freezing Medium: Environmental friendly
- Equipment Noise: ≦65dB
- Applicable Temperature:5～38℃
Shipping Specs
- Equipment Dimension(L*W*H): 994.40*700*694.50mm
- Equipment Weight: 105kg
- Wooden Dimension(L*W*H): 107.5*78*86cm
- Wooden Weight: 126kg
Container Qty
- 20’GP: 32 Units
- 40’GP: 60 Units

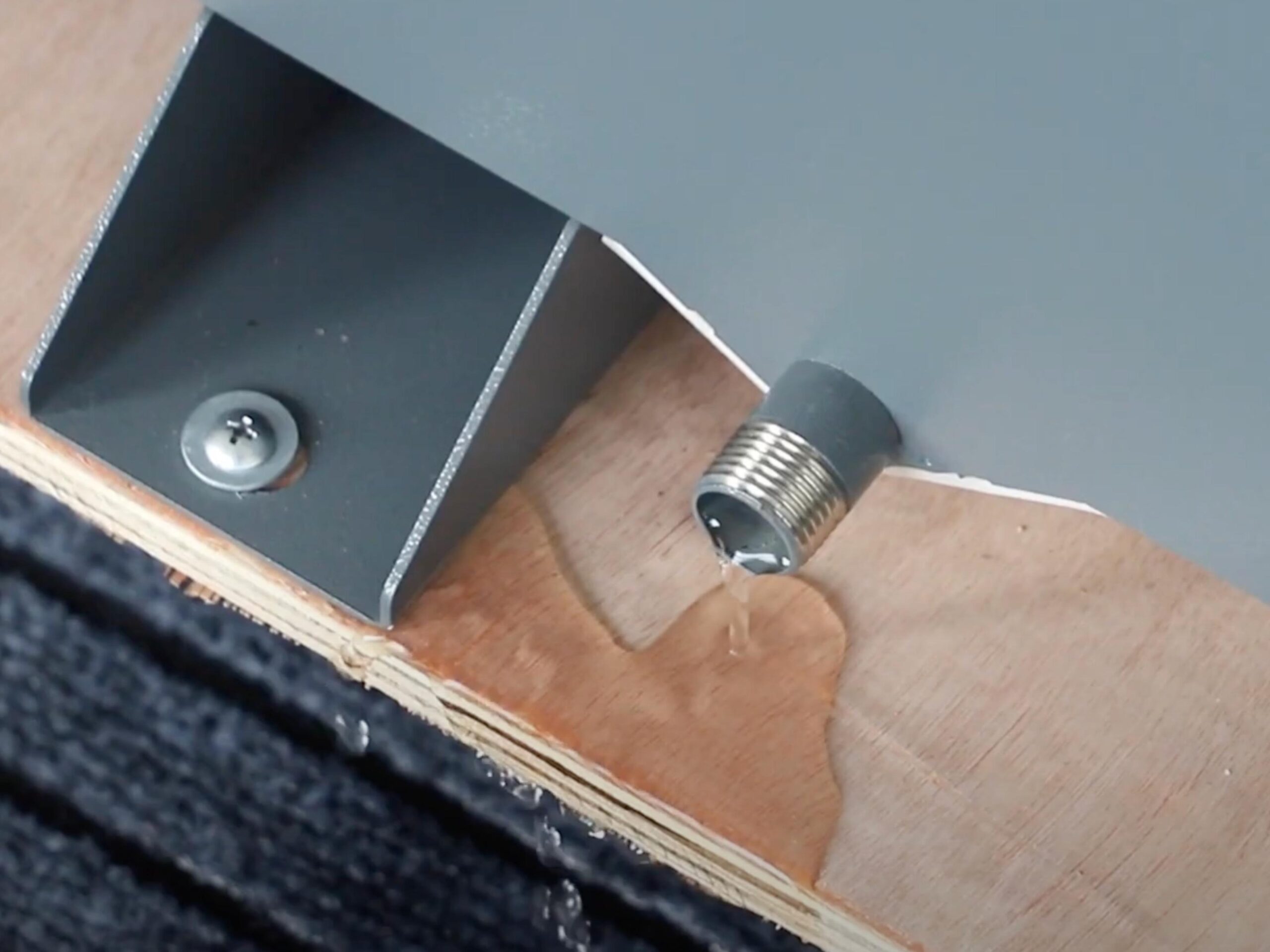

Continuous Drainage
The drainage system of YCD-7S is installed in the ceiling. Usually the drainage pipeline is arranged prior to installing the dehumidifier. Once the pipeline is installed, all you need to do is attach the hose to the dehumidifier’s drain point and enjoy continuous drainage.
Washable Filters
It is recommended to remove and clean the filters every 2-3 months. Use fresh water or a vacuum cleaner to remove dust from the mesh filter. Also, also removing the air filters, use a soft cloth to wipe the dust off the dehumidifier body.
